Temperature Signage Hand Sanitizer Kiosk Dispenser
Temperature Signage Hand Sanitizer Kiosk Dispenser

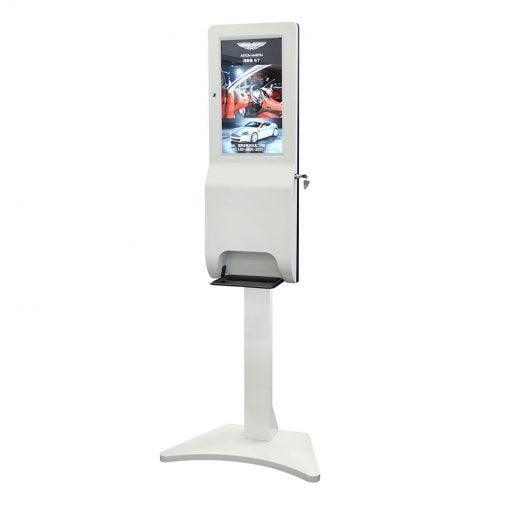

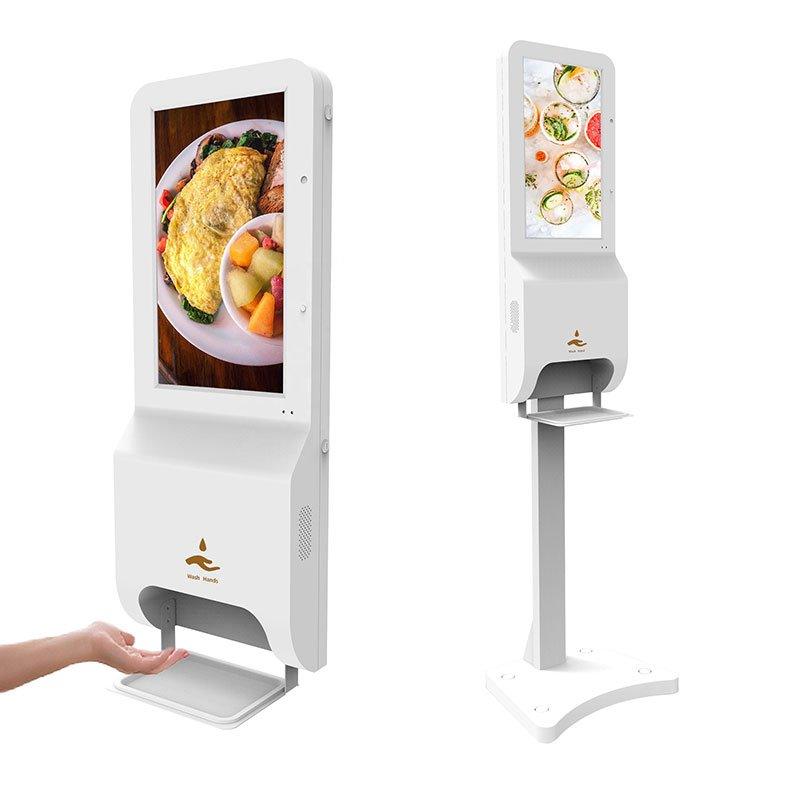

This 21.5 ” Android LCD screen has an auto Hand Sanitizer Dispenser. The multifunctional Kiosk is an interactive android tablet that can be remotely updated. Whilst the automatic dispenser can be used for handwashing, auto-dispensing gel, foam, or other liquid.

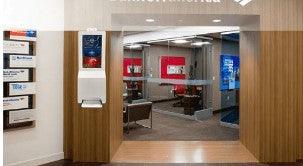

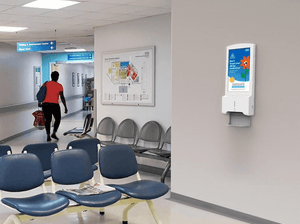

This Kiosk can double as a billboard which can be used in Hospital, Events, Meeting Room, Reception Desk, Hotel Lobby, School, Train Station, Airport, Toilet, etc.
Contact Us for pricing
Features of Digital Signage
1. Android OS 4.2.2 system.
2. Auto upload videos or photos from the software installed in the PC after connecting internet via wifi, even displays are in different places;
3. Support remote content update, upload, delete, support OSD, VOD, loop playback;
4. Support Split screen, Rolling text;
5. Support HD Video resolution: 1920×1080;
6. Support Calendar, Clock;
7. Support 3rd party APK installation;
8. Media files Supported: datob/ mpg/ divx(.avi)/ bmp/ jpgtf/ flash/ office files and so on;
9. Removeable Independent Main Board Box for maintenance;

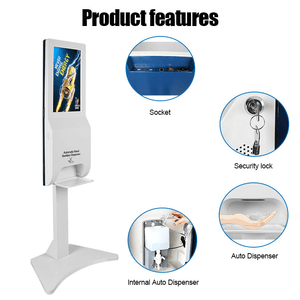

Features of Auto Dispenser
1. Auto Dispense: Auto Dispense by Sensor, touch free to avoid cross-infection;
2. Power Supply: AC adapter;
3. Auto Identify: Identity the automatically, only work for the authorized one;(Optional)
4. Dispensing Life: The life of our dispenser is more than 650000 times;
Volume: 3600ml
Dispense Volume: Number of Dispensing times can be adjusted to 1,2,3 or 4
Pump: Standard pump for Liquid, Foam, and Gel is optional.
Each drop is about 1ML for Gel; 0.4ML for Foam; 2ML for Liquid.
ITEM | SPECIFICATION | |
CPU | Rockchip RK3288W 4-core ARM Cortex-A17 clocked at 1.6GH | |
Chipset | Hi3751 V310 | |
RAM | 2GB DDR3 as standard | |
Storage | 16GB | |
OS | Android 7.1 | |
Display | 21.5” TFT LCD, 1920 x 1080p, LVDS | |
Video-Input | Format | 480i, 576i |
Video System | PAL / NTSC / SECAM | |
Video Level | 1.0 VP-P +/- 5% | |
HDMI | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K2K | |
UART | TTL | |
USB | MPEG 1/2, H.264, VC-1, MPEG-4 up to FHD | |
TF-Card | (1920×1080), RM/RMVB up to 720P | |
Audio Input | CVBS Audio (L/R RCA input, 0.2 ~ 2.0 VRMS) | |
Audio Decode | Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD, MPEG | |
L1/L2, MP3, AAC_LC, HE_AACV2, LPCM, APE, FLAC, OggVorbis, ARM-NB, ARM-WB, G.711(u/a) | ||
Video Output | CVBS (format: 480i, 576i; video level: 1.0VP-P +/- 5%) | |
Audio Output | CVBS Audio | L/R RCA Output (250mVRMS +/- 10%) |
Frequency | 100Hz ~ 15KHz @ +/-3dB (0dB reference signal at | |
Response | 1KHz) | |
Max. Output | 2 x 8W (8ohm) THD+N < 10% @ 1KHz | |
Power | ||
Power | DC 12V (DC input) | |
3.3V / 5V / 12V (to panel) | ||
Standby Power Consumption < 0.5W | ||
Connection | WIFI | 802.11 b/g/n, built-in module optional, need ANT |
Ethernet | 10/100M auto-identification and DHCP, USB driver | |
Data Network | 3G/4G | |
COMB Filter | 3D | |
Deinterlace | 3D | |
Work Temp. | -10 ~ 55oC | |
Storage Temp. | -10 ~ 60oC |
